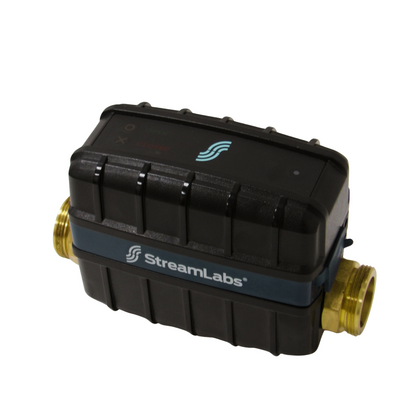

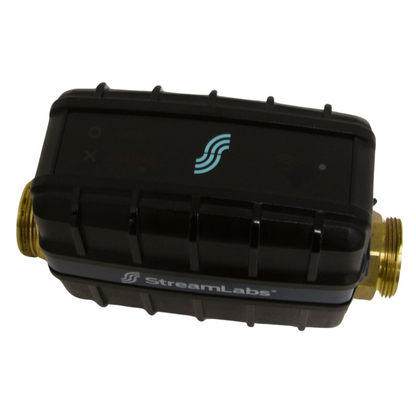

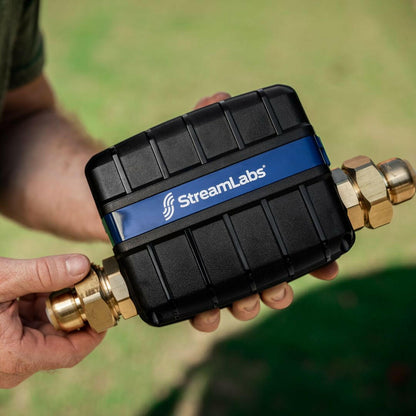

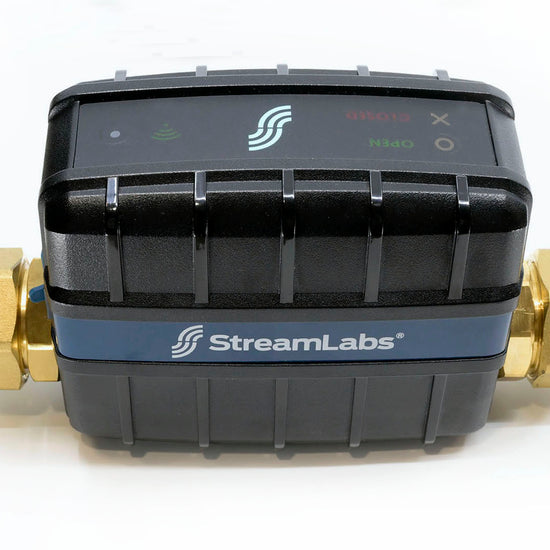

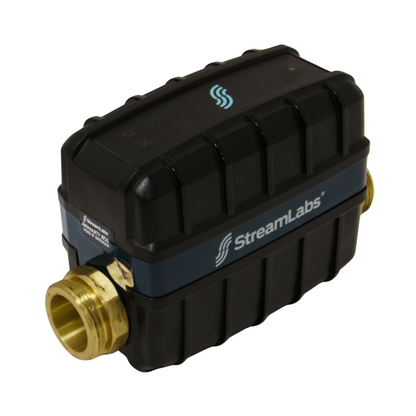

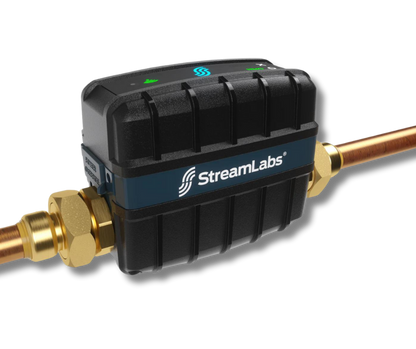

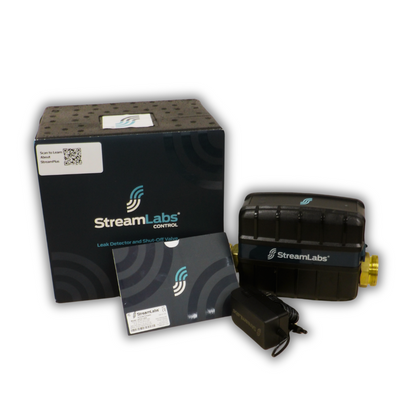

StreamLabs Control

Regular price: $999.00
Regular price
Sale price: $999.00
Unit price: per

Product variants

Description

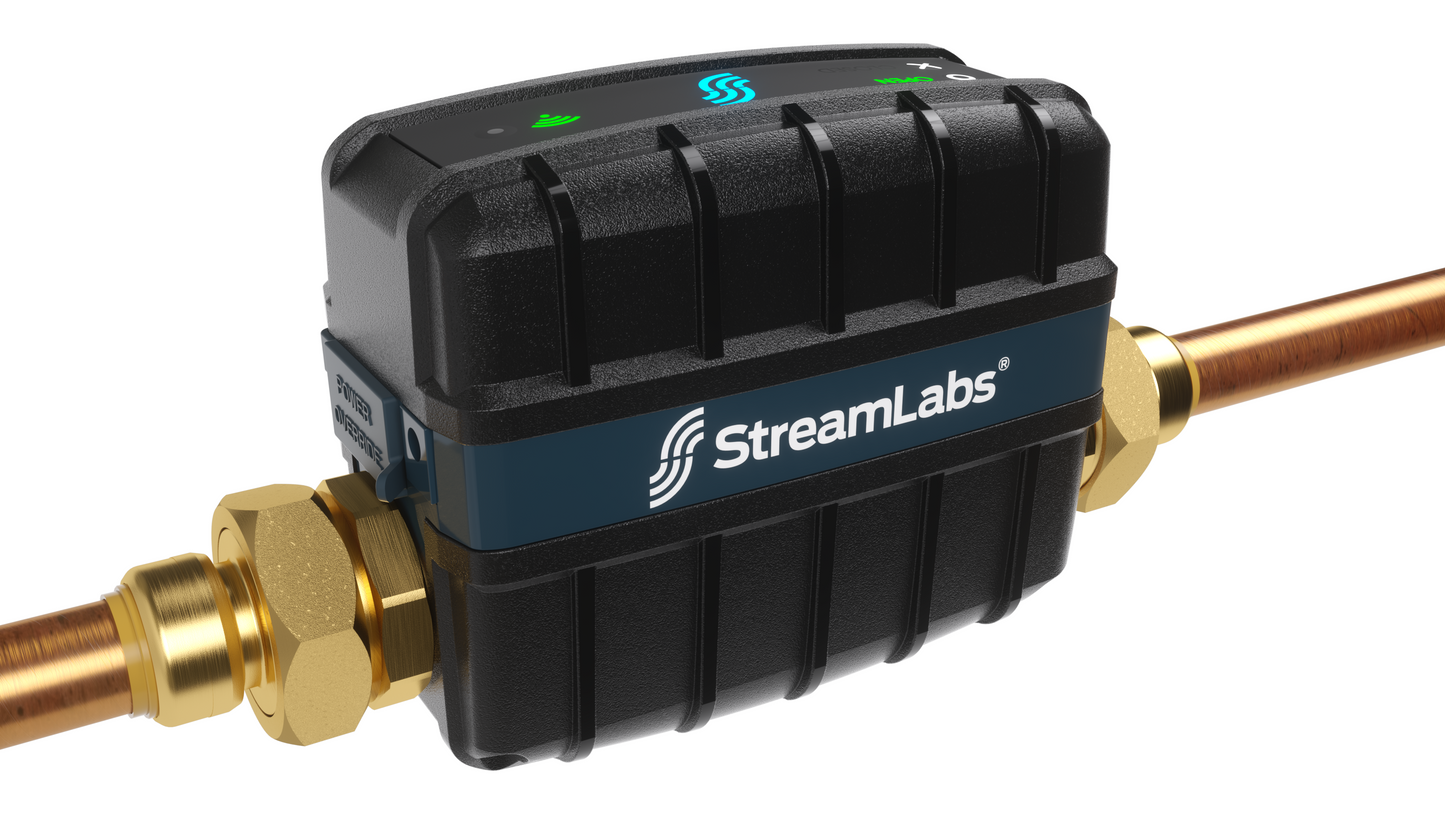

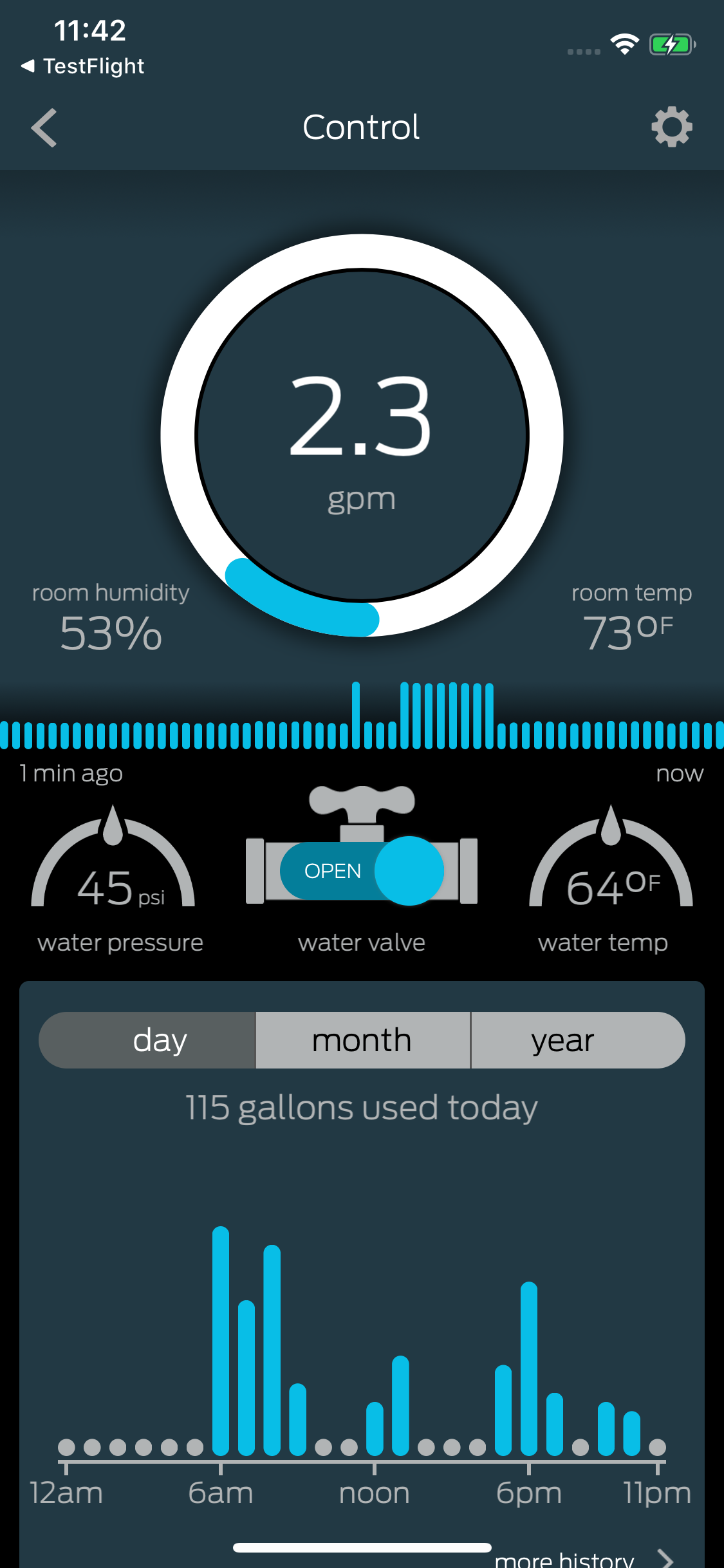

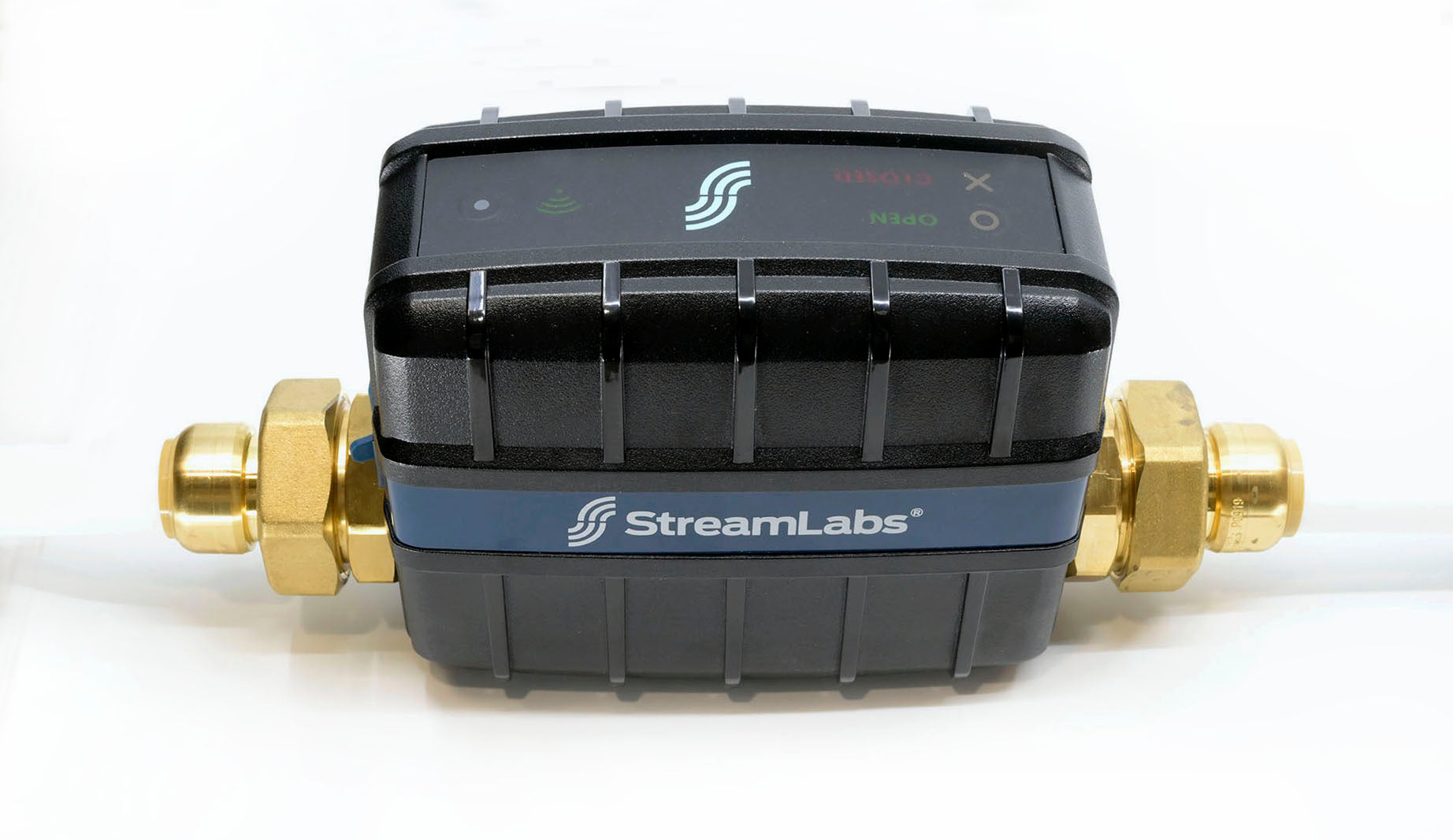

The StreamLabs Control is a smart automatic water shut-off valve designed with state-of-the-art ultrasonic flow metering technology to monitor and protect your entire home plumbing system. Through the StreamLabs App, the Control tracks and reports water usage by hour, day, and month, and sends alerts when leaks or freeze conditions are detected. Featuring home and away modes, the Control automatically shuts off water if a leak is detected with Smart Alerts learning leak detection.

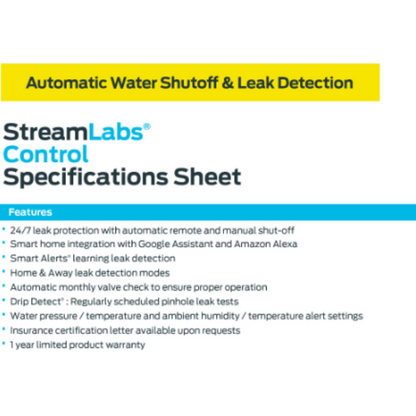

Technical Specifications

Dimensions: 8.0" (L) x 3.5" (W) x 5.4" (H)
Weight: 3.5 lbs (not including fittings)(H)
Warranty: 1 year limited product warranty
App Compatibility: iOS, compatible with iPhone or iPad, Android, compatible with phone or tablet*
Low-Flow Detection: 0.1 gpm low-flow detection

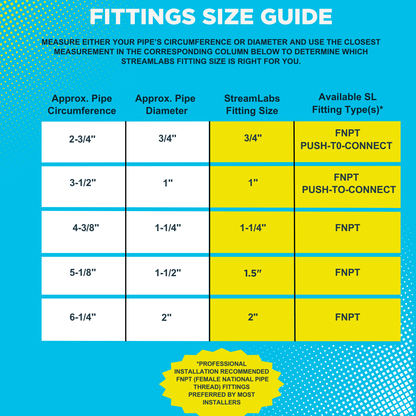

Compatible Pipe Sizes: 3/4", 1", 1-1/4" Copper Tube Size (CTS) – Depending on fittings
Compatible Pipe Types: FNPT Threaded Connection: Any pipe type SharkBite®Connection:PEX, copper, CPVC, PE-RT**
Universal Power Supply: Input: 100-240VAC~50/600Hz, 0.5A;Output:12 V @ 1 A UL Listed 10’ cord included, 25’ & 50’ extension cable sold separately max distance 100’
Power Supply Length: 10 ft.(additional extension cables available for purchase, 25 & 50 ft.)
Water Temperature: min. 40°F (4.4°C) / max. 105°F (40°C) for optimal flow accuracy
Operating Pressure: max. 200 psi (14 bar) Limited by Pipe
Ambient Temperature: min. 32° F (0° C) / max. 115° F (46.1° C)for optimal flow accuracy
Operating Environment: Indoor use only.May be installed outdoors with a NEMA approved enclosure
IP Rating: IP 54 / 56 Rating***
Network: Wi-Fi 802.11b/g/n, 2.4 GHz

*Contact StreamLabs support for most up-to-date compatible version
**1-1/4" SharkBite fitting not approved for PE-RT use
***IP 54 rated for indoor use, IP 56 rating achievable with outdoor NEMA approved enclosure

Product Detection Settings

Slow Leak: 0.1, 0.25, 0.5, 1.0 GPM for 1, 5, 10, 15, 20, 30, or 60 mins
Major Leak: 2, 3, 4, 5, 10, 15 GPM for 5s, 30s, 1, 5, 10, 20, or 30 mins
Away Mode: Flow above 0.1 GPMThat lasts longer than 5s, 15s, 30s, 1, or 5 mins
Smart Alert: Control can learn usage habits, notify of any abnormal usage and shut off the water (optional)
Drip Detect™: Daily, Weekly, or Monthly Test (user configurable)
Pressure Alert: LOW: 10 psi, 20 psi, 30 psi, 40 psi for 1 minHIGH: 70 psi, 80 psi, 90 psi, 100psi for 1 min
Humidity Alert: LOW: 20%, 25%, 30%, 35% for 5 minsHIGH: 50%, 60%, 70%, 90% for 5 mins
Water Temperature Alert: LOW: 50°F, 45°F, 40°F, 35°F for 1 minHIGH: 90°F, 95°F, 100°F, 115°F for 1 min
Ambient Temperature Alert: LOW: 50°F, 45°F, 40°F, 35°F for 5 minsHIGH: 90°F, 100°F, 115°F, 120°F for 5 mins
